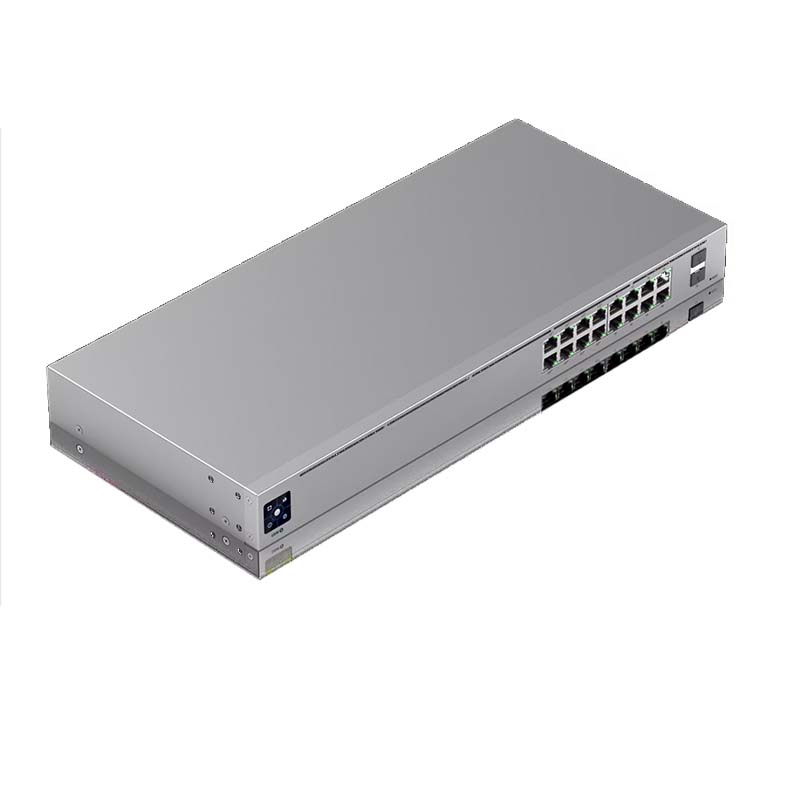

UniFi 16-Port PoE Switch

UniFi 16-Port PoE Switch

Technical Specifications

Mechanical

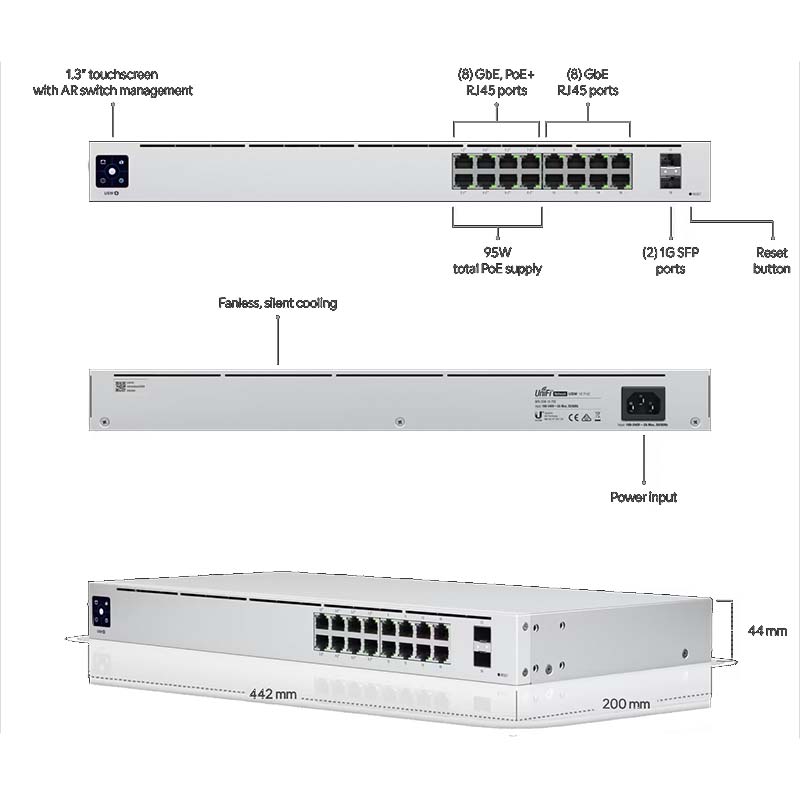

• Dimensions: 17.4 x 7.9 x 1.7″
• Weight Without Mounting Brackets: 6.2 lb
• Weight With Mounting Brackets: 6.4 lb
• Enclosure Material: SGCC Steel

Hardware

• Management Interface: Ethernet In-Band
• Networking Interface: (16) GbE RJ45 ports / (2) 1G SFP ports
• PoE Interface: (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
• Total Non-Blocking Throughput: 18 Gbps
• Switching Capacity: 36 Gbps
• Forwarding Rate: 26.78 Mpps
• Power Method: Universal Input, 100—240V AC, 50/60 Hz
• Power Supply: AC/DC, Internal, 60W
• Supported Voltage Range: 100—240V AC
• Max. Power Consumption: 18W (Excluding PoE Output)
• Total Available PoE: 42W
• Max. PoE Wattage Per Port by PSE: PoE+: 32W
• Voltage Range PoE Mode: PoE: 44—57V / PoE+: 50—57V
• ESD/EMP Protection: Air: ± 16kV, Contact: ± 12kV
• LCM Display: (1) 1.3″ Touchscreen
• Button: Factory Reset
• Shock and Vibration: ETSI300-019-1.4 Standard
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 10 to 90% Noncondensing
• Certifications: CE, FCC, IC

LEDs

• System: Status
• Ethernet: PoE | Speed/Link/Activity
• SFP: Link/Activity

Application Requirements

• UniFi Network: Version 7.2.94 and later
